How to Use a Map

Page 6



Terrain Features



We will begin our discussion of terrain features with the major terrain features: Hill, Saddle, Ridge, Valley

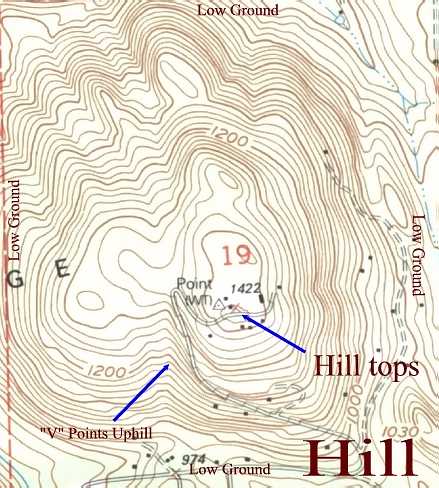

A HILL is a terrain feature that has low ground on all four sides. It is shown on a map as a series of circular contour lines. The center of the smallest circular contour line is considered the hilltop.




Click to enlarge Picture



A SADDLE is a terrain feature that has high ground on two sides opposite each other, and low ground on the other two sides that are also opposite of each other.




Click to Enlarge Picture

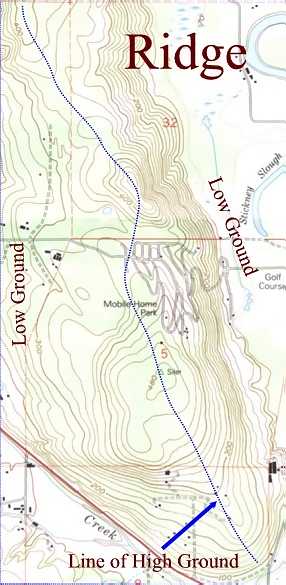

A RIDGE is a line of high ground, with minor variations along its crest. It is not simply a line of hills. The ridge is is appreciably higher than the ground on both sides of the ridge.




Click to Enlarge Picture



A VALLEY is a large area of low ground, normally with high ground on two opposite sides. Generally, a valley will have two ridges on each side running the length of the valley. It will also have a large stream or river running it's length.




Click to Enlarge Picture
